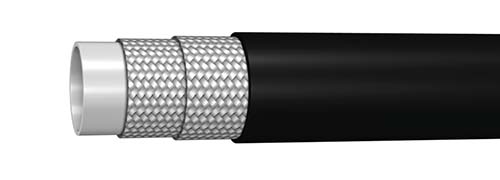

PH194-LOW TEMPERATURE–R18

Applicable Standard: Exceeds SAE 100 R18 / DIN EN ISO 3949

Construction

Core

Thermoplastic Elastomer

Reinforcement

One or more Braids of Synthetic Fiber

Cover

Special Polyester Elastomer, Black Colour, Pin pricked.

Application

Constant Pressure Hydraulic Lines 210bar. Suitable for hydraulic application with low temperature requirements and abrasion resistance for use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for agricultural machinery, earthm

Note: Available Twin & Multi lines with different Hose combination and Size. Also special colours available on request. Please specify our part nos. as PH195 for electrical non - conductive application - Orange colour cover

Temperature Range : Continuous: -55°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
