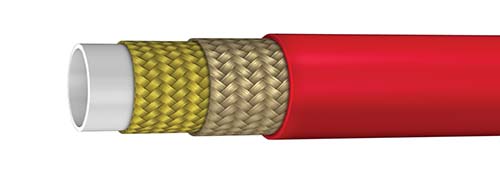

PH325-ELECTRICALLY CONDUCTIVE COMPRESSED NATURAL GAS

Applicable Standard: Conforms to NFPA 52

Construction

Core

Nylon

Reinforcement

Two or more Braids of Aramid fiber with single braid of steel wire

Cover

Polyurethane, Red Colour, Pin pricked

Application

Refueling hose specially designed for conveying compressed natural gas. Dissipates static build-up Vaccum Rating : 28 inch Hg Special Feature : Twin and multi-lines available

Note: Wire spring guard must be used on ANSI/CSA design certified CNG dispencer fill hose assemblies. Special colours available on request

Temperature Range : Continuous: -40°C to +80°C
