PH348–MEDIUM PRESSURE HYDRAULIC HOSE–1WB

Applicable Standard: Polyhose Proprietary Product and Exceeds SAE / EN One wire braid hose specification

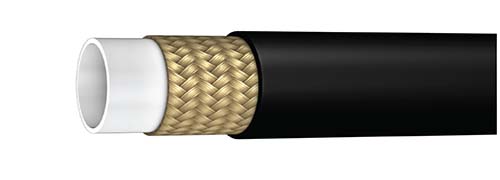

Construction

Core

Thermoplastic Elastomer

Reinforcement

Single Braid of Steel Wire

Cover

Polyurethane, Black Colour, Pin pricked (Optional)

Application

Medium Pressure Hydraulic Lines 100 to 350 bar. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articul

Note: Available Twin & Multi lines with different Hose combination and Size. Also special colours available on request

Temperature Range : Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
